Models
Gigabit Media Converter
1.Overview

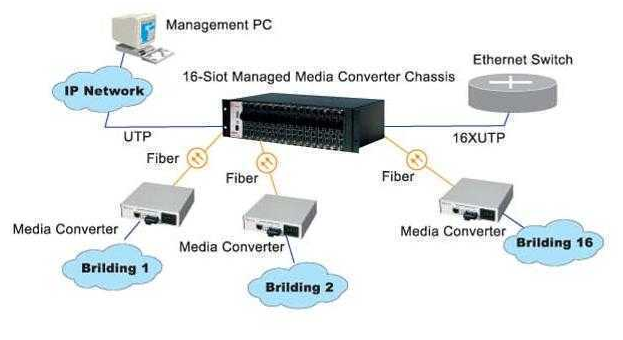

FB-1000MMC Series Media Converter is a 10/100/1000Base-TX fast Ethernet media converter with the function of auto negotiation and auto MDI/MDIX cable selection. This device translates transmission signals from a twisted-pair 10Base-T, 100Base-TX or 1000Base-T cable to 1000Base-FX fiber optic cable. With intelligent SNMP-based network management, user can monitor and configure the Copper Port and Optical Port of center chassis and remote standalone easily, and helps network operators quickly isolate problems without visiting multiple wiring closets, avoiding expensive downtime. Besides, user can control the bandwidth rate limiting.
2.Features
Fully compatible with IEEE802.3、IEEE802.3u standards
Up to 100km distance on single mode optical port
Up to 9278 bytes package forwarded, transmit 802.1Q VLAN TAG protocol transparently
Optical port support Dual-strand, single-strand and CWDM etc.
Ethernet copper port supports 10/100/1000Mbps speed and half/full duplex mode Auto-negotiate
Ethernet copper port supports MDI/MDI-X auto sensing
The Number of Ethernet copper ports can extend to 4ports
Backup optical ports optional, SFP device optional
IEEE802.3af PoE (for PD) optional
Standalones and Chassis Modules Optional, Chassis support cascade link up to 4 numbers for management
3.Software Features
Support Console, WEB and SNMP management
View & configure the working status of local chassis and remote standalone device, including connection status, speed, half/full duplex mode, port status
Support rate limit with step of 8Mbps in 1000Mbps speed, 0.8Mbps in 100Mbps speed, and 0.08Mbps in 10Mbps speed
Support remote loop back function
Support online firmware upgraded
4.Specification
4.1.Ethernet Port
Fully compatible with IEEE802.3、IEEE802.3u、IEEE802.3ab standards
Data Rate: 10/100/1000Mbps auto-negotiation (only 1000Mbps for 1000Mbps Device)
Half/full duplex mode auto-negotiation
Connectors: RJ45 Jack
Support automatic MDI/MDOI-X crossover
4.2.Fiber Optical Port
Adopt standard 1×9pin optical transceiver module;
Wavelength: 850nm, 1310nm on multi-mode, 1310nm,1550nm on single-mode;
The maximum distance for single fiber is 80KM,and the maximum distance for dual fiber is 100KM without any relay device;
SC/PC, ST/PC and FC/PC are optional
4.3.Power
Power Input：
AC Power: 100V~242VAC, 50/60Hz
DC Power: -48VDC
Power Consumption：<3w<>
4.4.Environment
Operating:
Temperature: 0~+50℃
Relative Humidity: 0~90% (non-condensing)
Storage:
Temperature: -25~+70℃
Relative Humidity: 0~95% (non-condensing)
4.5.Dimensions
Standalone:
132mm(width)×36mm(height)×122mm(depth)
19-inch Chassis:
440mm(width)×125mm(height)×250mm(depth)
6.Order Information
6.1part number of module or standalone media converter
Note: X should be changed to 1 or 2. when X=1, it means unmanaged converter. When X=2, it means managed converter
P/N Description
FX-S4022CA Single mode, 1000M, Distance: 20Km, 1310nm, SC, Standalone, 220VAC
FX-S4022CD Single mode, 1000M, Distance: 20Km, 1310nm, SC, Standalone, -48VDC
FX-S7022TM Single mode, 10/100/1000M, Distance: 20Km, 1310nm, ST, Module
FX-S7022CM Single mode, 10/100/1000M, Distance: 20Km, 1310nm, SC, Module
FX-M41CD Multimode, 1000M, 850nm, ST, Standalone, -48VDC
FX-W4022CA Single Strand, 1000M, Distance: 20Km, 1310nm, SC, Standalone, 220VAC
FX-W7022CM Single Strand, 10/100/1000M, Distance: 20Km, 1310nm, SC, Module
6.2Part Number(P/N) of Chassis
P/N Description
FC-216 16-slot chassis, support double redundant power supplies
FC-216-M Management Card of the chassis
6.3Part Number(P/N) of Chassis power supply module
P/N Description
FP-2100A 16-slot chassis power supply module, AC 220V input, 100Watt output
FP-2100D 16-slot chassis power supply module, DC -48V input, 100Watt output
10/100/1000M Media Converter
1.Overview
FB-1000MMC Series Media Converter is a 10/100/1000Base-TX fast Ethernet media converter with the function of auto negotiation and auto MDI/MDIX cable selection. This device translates transmission signals from a twisted-pair 10Base-T, 100Base-TX or 1000Base-T cable to 1000Base-FX fiber optic cable. With intelligent SNMP-based network management, user can monitor and configure the Copper Port and Optical Port of center chassis and remote standalone easily, and helps network operators quickly isolate problems without visiting multiple wiring closets, avoiding expensive downtime. Besides, user can control the bandwidth rate limiting.
2.Features
Fully compatible with IEEE802.3、IEEE802.3u standards
Up to 100km distance on single mode optical port
Up to 9278 bytes package forwarded, transmit 802.1Q VLAN TAG protocol transparently
Optical port support Dual-strand, single-strand and CWDM etc.
Ethernet copper port supports 10/100/1000Mbps speed and half/full duplex mode Auto-negotiate
Ethernet copper port supports MDI/MDI-X auto sensing
The Number of Ethernet copper ports can extend to 4ports
Backup optical ports optional, SFP device optional
IEEE802.3af PoE (for PD) optional
Standalones and Chassis Modules Optional, Chassis support cascade link up to 4 numbers for management
3.Software Features
Support Console, WEB and SNMP management
View & configure the working status of local chassis and remote standalone device, including connection status, speed, half/full duplex mode, port status
Support rate limit with step of 8Mbps in 1000Mbps speed, 0.8Mbps in 100Mbps speed, and 0.08Mbps in 10Mbps speed
Support remote loop back function
Support online firmware upgraded
4.Specification
4.1.Ethernet Port
Fully compatible with IEEE802.3、IEEE802.3u、IEEE802.3ab standards
Data Rate: 10/100/1000Mbps auto-negotiation (only 1000Mbps for 1000Mbps Device)
Half/full duplex mode auto-negotiation
Connectors: RJ45 Jack
Support automatic MDI/MDOI-X crossover
4.2.Fiber Optical Port
Adopt standard 1×9pin optical transceiver module;
Wavelength: 850nm, 1310nm on multi-mode, 1310nm,1550nm on single-mode;
Up to 80Km transmission distance on single-mode;
SC/PC, ST/PC and FC/PC are optional
4.3.Power
Power Input:
AC Power: 100V~242VAC, 50/60Hz
DC Power: -48VDC
Power Consumption：<3W
4.4.Environment
Operating
Temperature: 0~+50℃
Relative Humidity: 0~90% (non-condensing)
Storage
Temperature: -25~+70℃
Relative Humidity: 0~95% (non-condensing)
4.5.Dimensions
Standalone:
132mm(width)×36mm(height)×122mm(depth)
19-inch Chassis:
440mm(width)×125mm(height)×250mm(depth)
6.Order Information
6.1part number of module or standalone media converter
Note: X should be changed to 1 or 2. when X=1, it means unmanaged converter. When X=2, it means managed converter
P/N Description
FX-S4022CA Single mode, 1000M, Distance: 20Km, 1310nm, SC, Standalone, 220VAC
FX-S4022CD Single mode, 1000M, Distance: 20Km, 1310nm, SC, Standalone, -48VDC
FX-S7022TM Single mode, 10/100/1000M, Distance: 20Km, 1310nm, ST, Module
FX-S7022CM Single mode, 10/100/1000M, Distance: 20Km, 1310nm, SC, Module
FX-M41CD Multimode, 1000M, 850nm, ST, Standalone, -48VDC
FX-W4022CA Single Strand, 1000M, Distance: 20Km, 1310nm, SC, Standalone, 220VAC
FX-W7022CM Single Strand, 10/100/1000M, Distance: 20Km, 1310nm, SC, Module
6.2Part Number(P/N) of Chassis
P/N Description
FC-216 16-slot chassis, support double redundant power supplies
FC-216-M Management Card of the chassis
6.3Part Number(P/N) of Chassis power supply module
P/N Description
FP-2100A 16-slot chassis power supply module, AC 220V input, 100Watt output
FP-2100D 16-slot chassis power supply module, DC -48V input, 100Watt output
