FC-613 MSTP Platform

Multi-channel Video/Audio/Data/ETH Optical Add/Drop


FC-613 MSTP Platform

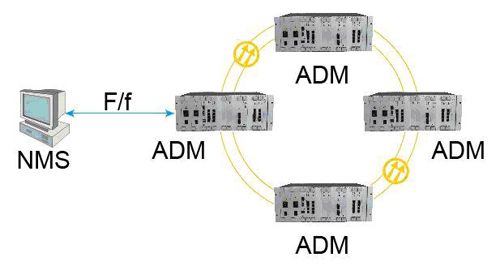

FC-613 is a STM-1 optical transmission system, whose technical performances fully comply with ITU-T and ETSI standards. The system provides up to six STM-1 aggregate optical interfaces, completing synchronous timing features and a powerful non-blocking cross connection matrix. It can be used for building point-to-point, chain or ring networks, with SNCP features, serving departments of Telecom, Traffic or Energy industry, etc.

As an ADM or TM multiplexer;
Supports up to six STM-1 optical interfaces;
Supports up to 231 E1-circuit add/drop.
Provide Ethernet access of channelized E1;
Support any connectivity at VC12 or VC3 level;
Supports Auto Laser Shutdown (ALS) on each optical port
Support SETS, it is possible to tracing the line port or external synchronization input, provide external synchronization output, and automatically handle timing source rearrangement according to the failure message or SSM.
Support Path Protection and SNCP with switching time less than 50ms.
Support EOW system for site selection calling.
Supports firmware download locally and remotely without disturbance of existing traffic.
ONE management.
Supports network management based on PC via unified platform.
Provides 10/100Base-T Ethernet port or RS-232 serial port to connect local NMS (Network Management Station).

3、Interface Parameters

●Optical interface
• Bit Rate: 155.520Mb/s±4.6ppm
•  Standard: ITU-T G.957/G.958
• Optical fiber: ITU-T G.652/G.653, single mode
• Work wavelength: 1310nm (1550nm is optional)
• Relay-free transmission range: 40Km (60~100Km transmission distance available, the user should declare before ordering)
• Sensitivity: Better than -36dB
• Connector: FC (SC is optional, the user should declare before ordering)
• Interface: S-1.1
●E1 Tributary interface
• Bit Rate: 2.048Mb/s±50ppm
• Coding: HDB3
• Standard: ITU-T G.703
• Connector: 2mm high density connector
• Impedance : 75Ω non-balanced (120 Ω balanced is optional)
• Jitter performance: Comply ITU-T G. 823
●Ethernet interface
• Bit Rate: 10/100M self-adapting
•  Mode : Full/half duplex self-negotiation
•  Standard: IEEE 802.3
•  Interface: RJ-45 connector
●ETS interface
• Standard: ITU-T G.703、G.704、G.823
• Bit Rate: 2.048Mb/s±50ppm
• Impedance: 120Ω balanced
• Coding: HDB3
• Interface: RJ45 connector
●EX interface
• Standard: ITU-T G.703、G.704、G.823
• Bit Rate: 2.048Mb/s±50ppm
• Impedance: 120Ω balanced
• Coding: HDB3
• Interface: RJ45 connector
●Console management interface
• Baud rate: 19200
• Bits: 8
• Stop bit: 1
• parity check: None
• Electricity level: EIA-RS232 standard
• Interface: RJ-45 connector
●RS-232 user interface
• Maximum bit rate: 9600
• Electricity level: EIA-RS232 standard
• Interface: RJ-45 connector
●Ethernet management interface
• Bit rate: 100Mb/s
• Connector: RJ45
Technical Parameters
●Dimension and weights
• Dimension: 483mm×265mm×295mm(width ×height ×depth)
• Weights: 12kg(Fully equipped weight)
●Environment requirements
• Working temperature: 0℃~45℃
• Relative Humidity: ≤95%,no condensation
• Atmospheric pressure: 70~106 Kpa
●Power supply
• Input DC voltage: -36 ~ -72V DC
• Power consumption: Fully equipped power consumption: 70W±10%

4、Ordering Information
SDH chassis without power supply and business card

DXC, EOW, Management, and Clock

Database backup card, for management data and DXC data

2xSTM-1 optic ports, 1+1 APS

8E1 Mapper card

21E1 Mapper card

4E1 PDH tribute card

8E1 PDH tribute card

4 ch FOM card

6x10/100M Eth access card

4x10/100M optic EoS card

4x10/100M EoS card

External 220VAC power supply, 100W

6.2Part Number(P/N) of Chassis
P/N                               Description
FC-216                    16-slot chassis, support double redundant power supplies
FC-216-M                 Management Card of the chassis

6.3Part Number(P/N) of Chassis power supply module
P/N                               Description
FP-2100A                16-slot chassis power supply module, AC 220V input, 100Watt output
FP-2100D                16-slot chassis power supply module, DC -48V input, 100Watt output

Multi-channel Video/Audio/Data/ETH Optical Add/Drop

The product is a fiber optical digital uncompressed multiplexer for transmitting 2 to 64 channels of uncompressed high quality video, bi-directional audio and data, 4 E1 and 10/100M Ethernet over two fibers.

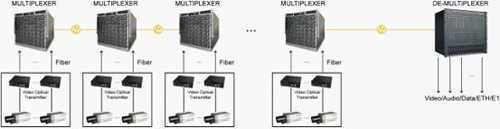

It provides multiply optical ports to receive the video, audio and data from video transmitter and multiplex all of these video, audio and data into two fibers.

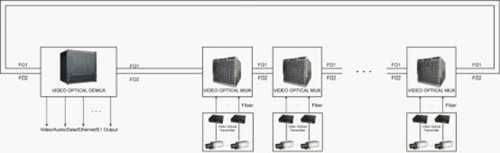

It supports daisy-chain and ring topology, with the video add/drop multiplexing technology, which makes it insert local video, audio and data into the transmission optical fibers, or drop the video, audio and data from the transmission optical fibers directly. The other video, audio and data will pass through without interference. With the technology, it provides a cost-effective solution for multiply equipments cascading and extending the transmission capacity up to 128 channels audio, video and data over a single fiber, or 256 channels over two fibers.

For the ring topology, it provides the feature of 1+1 transmission fiber protection and APS (Auto-Protection Switch). If one of the fiber is broken, the equipment will detected it and switch to another transmission path automatically without interrupt, which makes the data transmission with high stability.

At the receiving side, the de-multiplexer extracts all of video, audio and data from transmission optical fibers and output by the corresponding interfaces. The video, audio and data will be put into the cross connection device, for example, the video matrix, and then to be displayed on the screen or TV wall.

Applications for this product series include CCTV, video surveillance, ITS and etc.


●Multiplex 2 to 64 channels of high quality video audio and data over optical fiber

●Provide up to 64 optical ports to receive the video audio and data from the front-end video optical transmitters

●Support video, audio and data add to or drop from the transmission fibers

●Support multiple equipment cascading to extend the transmission capacity

●Support daisy-chain and ring topology, and 1+1 protection & APS for ring topology

●APS (Auto-Protection Switch) time less than 20ms

●Exceeds RS250C Medium Haul Specification for DG, DP and SNR on video

●5Hz~8MHz video bandwidth, Compatible with NTSC, PAL and SECAM on video

●Uncompressed video, 8 /10 Bit digital encoding/decoding

●Support 4 E1, G.703 standard optional

●10M/100M Ethernet compatible with IEEE802.3 optional

●Easy installation and operation

●Transmission up to 80KM over optical fiber

●10U high, 19-inch wide chassis

●Modularized design for convenient upgrade and replacement

●Support dual-power supply redundancy


Specifications ●Optical: Local Insert: up to 64 no. Backhaul input: 2 no. Backhaul output: 2 no. Connector: FC/SC optional Mode: single-mode Distance: 20/40/60/80Km ●Power: 200-240VAC,50/60Hz ●Indicators: Power, Optical Link Status Video Signal, E1 Alarm, Ethernet Status ●Video: Channel: 2~64 Format: PAL/NTSC/SECAM Video Signal: 1Vp-p, 75Ω Digitization: 8/10 bits, Bandwidth 8MHz DG <1% DP <1o SNR >65dB ●Audio Channel: 2~64 Audio Input: unbalanced, 600 Ohms Digitization: 16bit@48k Frequency: 10Hz to 20KHz SNR: >70dB ●Data: Channel: 2~64 Data Rate: 0~23.04Kbps/Ch Format: RS232, RS422/RS485 ●E1 support: Bit rate: 2.048Mb Line code: HDB3 Standard: ITU-T G.703 Connector: CC3(1.0/2.8) line impedance: 75ohm Jitter Performance: G.742 and G.823 ●Ethernet: Data Rate: 10/100Mbps auto detect Standard: IEEE802.3 Connector: RJ45 Auto-negotiation with half/full duplex ●Environment: Operating: -40oC~+70 oC Storage: -40oC~+85 oC Humidity: 0-95% Non-Condensing ●Physical Dimension: 441(W)x340(D)x445(H) (mm)


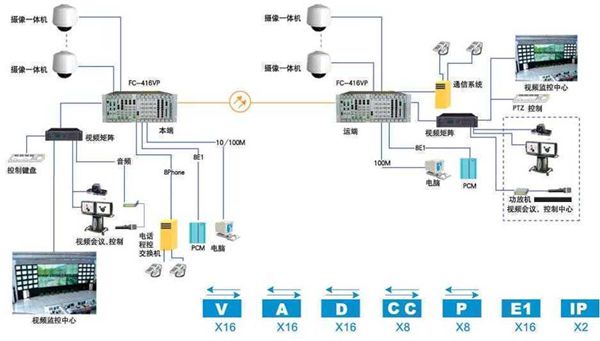

The Fibridge Vlightning1000 video transmitter/data transceiver and video receiver/data transceiver series utilizes state-of-the-art digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of 8 bi-directional independent video channels, sixteen bi-directional audio channels, sixteen bi-directional data channels, 8 E1 channels and one 100M Ethernet over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The product may be also maintained in our future product FB-V1000NMS, a Network Management System. The product is widely used in the field of CCTV, video surveillance, national defense, ITS and etc.


Support Console, WEB and SNMP format management

Monitor the module information including: Model, Version, Product description, Slot index, Device base information, Local Video Control, Local and Remote Video transmitting Status, Ethernet Status.

support 1/2/4/8 channels Video, E1, Ethernet, Audio, Data, concentrative management.

View the detailed information of power supply

Support real-time alarm and one history alarm message window



3.1Video Module

Channel: 8 bi-directional


Signal:1Vp-p, 75Ω

Digitization: 8bits/10bits digital encoding,16M sampling

Bandwidth: 8MHz

DG: <1%

DP: <1°

SNR: >65dB

Connector: BNC


3.2Audio Module

Channel: 16 bi-directional

Audio input:line input, unbalanced 600Ohms


Frequency:10Hz to 20KHz


3.3Data Module

Channel: 16

Rate: 0~100Kbps

Connector: RJ45.

Support RS232/485/422 Mode

8 channels RS232 data, 4 channels RS422, 4 channels RS485


3.4Ethernet& E1 Module


Channel: 2

Rate: 10/100Mbps

Double: Auto-negotiation with half/full duplex

Connector: RJ45

E1 Port:

Channel: 8

Rate:2.048Mbps ±50ppm

Mode: Unframed 75ohm and 120ohm selectable

Connector: BNC (75ohm), RJ45 (120ohm)


3.5Contact Closure & TTL Module:(NA)

Contact Closure:

Channel: 4 Bi-dir

Contacts: 220VAC, 1.0amp, 220watts.

Response Time: 0.5 msec maximum

Connector: Terminal plug with screw clamps


3.6TTL Port:

Channel: 1 Bi-dir

Connector: Terminal plug with screw clamps

FXO/FXS Phone Module :(NA)

Channel: 4.Bi-dir

Type: connected to PBX or telephone.

Connector: RJ11


3.7Vom Management module

The Vom module supports two kinds of management port. One is DB9, which gives Console management. The other is Ethernet, which gives SNMP-based management.

For more information about the management, please check relative software user manual.



Power Input:

AC Power: 100V~240VAC, 50/60Hz;

DC Power: -48VDC

Power Consumption:

Dimensions & Weight


4U-17Slot: 441(W) x 340(D) x 180(H) (mm)




Temperature: -40℃ ~ +70℃

Relative Humidity: 0~95% (non-condensing)


Temperature: -40℃ ~ +85℃

Relative Humidity: 0~95% (non-condensing)

Order Information
Vlightning1000 series 1.25G Multiservice System
For detailed order information, please check the Part Number.
Typical P/N:
P/N                          Description
FC-416VP            The 4U chassis have 17 slots. Vlightning1000 device the private
F7-416VP-M         The management module
4VTM                     4 channels video transmitter module
4VRM                    4 channels video receiver module
16DTRM              16 channels Bi-dir data module. Supports 4 channels RS422,
4 channels RS485, and  8 channels RS232 data.
16ATRM               16 channels Bi-dir audio module (8 channels stereo audio)
2385M                  Ethernet&E1 4U module. Supports 2 channels Ethernet and 8 channels E1.
2FM                       2 channels SM optical SC port 4U Module

Every kind of service port can be optional, please contact with Fibridge to get more details
